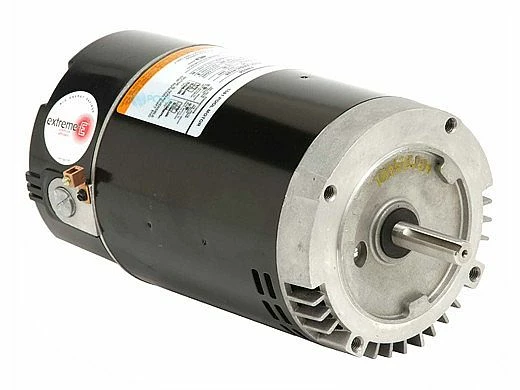

Emerson Replacement Keyed Shaft Pool Motor .75HP | 115/208/230V 56 Round Frame | Full-Rated Energy Efficient B634 | EB634 | ASB634

Innovative features, fast delivery, and exceptional reliability are the winning features built into every U.S. MOTORS® brand pool and spa motor Nidec Motor Corporation manufactures.  Built-in, industry-leading features like angled terminal boards for convenient access…voltage selection with the flip of a switch…no-worry switches with no field adjustment needed…all help to make installing and maintaining these pool and spa motors much faster and easier than the competition.

• Two Compartment
• Shaft Threads – 7/16-20 UNF-2A
• 50 Degree ‘C’ Ambient
• Triple Bearing Protection
• 1081 Design
• Continuous Duty
• Class B Insulated
• Open Drip-Proof
• Sealed Ball Bearings
• 300 Series Stainless Steel Shaft
• Thermally Protected
• 6.5″ Diameter Frame
• Switchless Design
• Voltage Selection Device (Dual Voltage Only)
• Frequency: 60
• Length Less Shaft: 11.02
• Weight: 27
