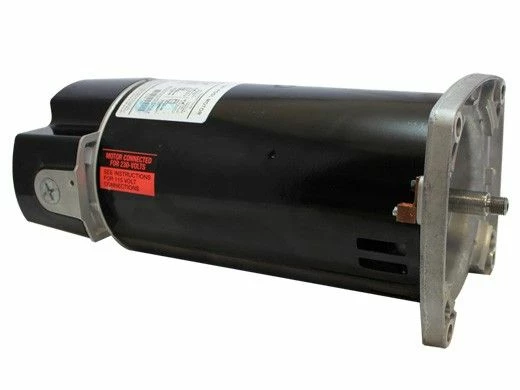

Nidec Motor Corp Aqua Shield EZ48 Threaded Shaft C-Flange Pool & Spa Motor | Standard Efficiency | 0.95 THP 115/230 V 56J Frame | AST095

Nidec Motor Corp Aqua Shield EZ48 Threaded Shaft C-Flange Pool & Spa Motor | Standard Efficiency | 0.95 THP 115/230 V 56J Frame | AST095 - Image 2

Nidec Motor Corp Aqua Shield EZ48 Threaded Shaft C-Flange Pool & Spa Motor | Standard Efficiency | 0.95 THP 115/230 V 56J Frame | AST095

Original price was: $200.85.Current price is: $99.99.

SKU: CG9VB 145575 Categories: Replacement Pump Motors, U.S. Motors

Expertly Sourced, Quality Guaranteed
Online assistance, always just a message away.
Shop with Ease
Get the quality you deserve, for less.

Description
Reviews (0)

Aqua-Shield EZ48™, which joins the U.S. MOTORS® brand family of pool motors manufactured by Nidec, is designed to provide superior moisture resistance inside the motor where water and debris can damage windings and cause premature motor failure. Aqua-Shield features additional bearing protection as well. Aqua-Shield motors will continue to deliver the three layers of bearing protection provided on our motors today (double-sealed ball bearings, lip seal and water slinger). In addition, Aqua-Shield features additional bearing protection by including a new internal bearing cover which protects the drive end bearings from internal moisture. Optimized internal air flow minimizes moisture buildup inside the motor.

Don’t waste time and profit. The Aqua-Shield EZ48 is one of the easiest and quickest 48 frame motors to install on the market today.

Features:

Two compartment
Triple bearing protection
Thermally protected
1081 Design
Shaft threads – 7/16-20 UNF-2A
Class B insulated
Open dripproof
Continuous duty
50°C ambient
300 series stainless steel shaft
Sealed ball bearings
Voltage selection device (dual voltage only)

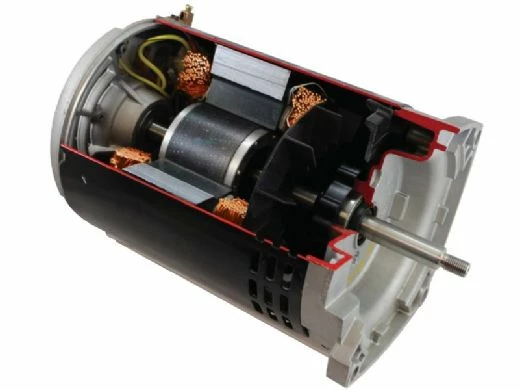

Fan Efficiently draws in air via the ventilation holes. Moisture is spun to the outer reaches of the inner
shell while air moves over the internal motor assembly for improved dryness.

Baffle Focuses the air pulled in by the fan to move over the internal parts of the motor.

Internal bearing cover Works to keep moisture away from the internal bearing to increase life.

Total horsepower Motors rated for THP (Total Horsepower) only to help reduce the number of SKU’s that you need to stock.

Improved Air Flow

Using the Aqua-Shield™ features, the redesigned fan, baffle and bearing cover work to optimize the air flow over the internal assembly of the motor. This creates a “Dry zone” that improves life expectancy by three times based on tests.
Voltage change device (dual voltage motors) change between 115V and 230V with a simple flip of a switch
Easy access to shaft Used to hold on to the motor while the impeller is removed from the opposite end. On competitive motors, the shaft is difficult to access without fishing through the switch and can result in broken parts
Angled terminal board allows visibility from the top down in tight quarters because many pumps are located up against a structure or near shrubbery
Additional space in back end to make connections
Switch design protects against corrosion while location protects from external damage

Specifications:

Model No	Total Horsepower	RPM	Voltage	Frequency	THP Amps	Motor Frame	Length Less Shaft	Weight
AST095	0.95	3450	230/115V	60	5.5/11.0	56J	11.00	18
AST125	1.25	3450	230/115V	60	7.0/14.0	56J	12.00	24
AST165	1.65	3450	230/115V	60	8.5/17.0	56J	12.50	27
AST225	2.25	3450	230/115V	60	9.5/19.0	56J	12.75	29
