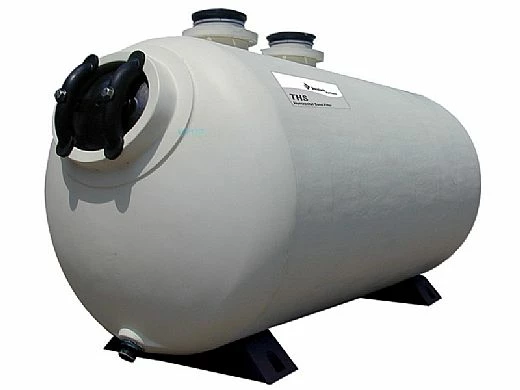

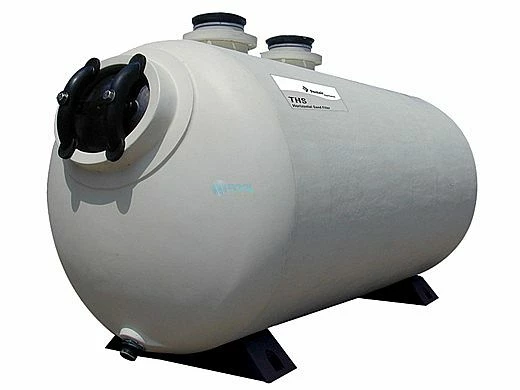

Pentair THS Series Horizontal Sand Filter 42″ X 96″ | THS4296 144296



Pentair Commercial Aquatics has a state-of-the-art horizontal sand filter unlike any other on the market. The THS Series filter is an NSF-approved 50 psi rated tank with flow rates up to 535 gpm in a single tank. The filter shell is manufactured from a longlasting composite laminate that makes winding unnecessary. A special coating gives the THS Series filter a smooth and attractive finish. An interior coating protects wet surfaces.



MATERIALS AND DESIGN
Tanks
• Construction: Multi-layer engineered fiberglass crafted of chopped glass and directional roving in an isopthalic polyester matrix.
• Operating Pressure: Capable of withstanding 50 PSI internal pressure.



INTERNALS
• Headers: One influent header is fitted with sufficient distributors to properly distribute incoming flow evenly across the sand bed surface. An additional effluent header is supplied with sufficient laterals equally distributed not less than 12 inches below the filtering sand bed. Laterals are 2 3⁄8″ x 10″ with 2″ NPT connections and constructed of ABS plastic with molded ‘V’-groove slots.



OPERATION / PERFORMANCE
• Flow Rate: NSF Listed for 5 to 20 GPM per square foot of filter area.
• Maximum Limits: Working pressure 50 PSI max. Continuous water temperature 125° F.
• Sand Media: #20 white quartz silica sand. Effective size 0.45-0.55 mm.
• Safety provisions: Each tank features an automatic and manual air release system fabricated of non-corrosive materials.

Tank Diameter

42″

Valve Position

Top

ClearPro Technology

No

Square Foot

27.60
