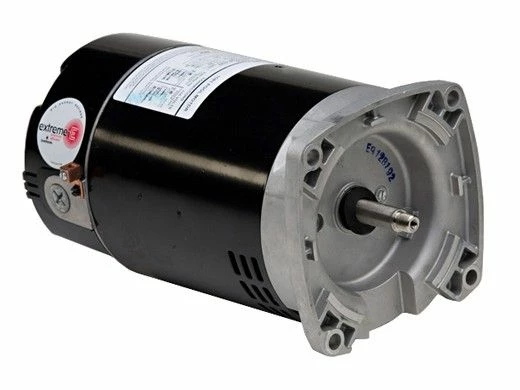

Replacement Square Flange Pool & Spa 2-Speed Motor | .75HP Full-Rated/1HP Up-Rated | 56-Frame Energy Efficient | 230V | R0479306 | B2980 | ASB2980

Original price was: $344.18.Current price is: $97.99.

SKU: CG9VB 177993 Categories: Replacement Pump Motors, U.S. Motors

Expertly Sourced, Quality Guaranteed
Online assistance, always just a message away.
Shop with Ease
Get the quality you deserve, for less.

Description
Reviews (0)

Innovative features, fast delivery, and exceptional reliability are the winning features built into every U.S. MOTORS® brand pool and spa motor Nidec Motor Corporation manufactures. Built-in, industry-leading features like angled terminal boards for convenient access…voltage selection with the flip of a switch…no-worry switches with no field adjustment needed…all help to make installing and maintaining these pool and spa motors much faster and easier than the competition.

Motor Features

Two Compartment
Shaft Threads – (Square Flange) 1/2-20 UNC-2A or (C-Flange) 7/16-20 UNF-2A
50°C Ambient
1081 Design
Continuous Duty
Open Dripproof
Class B Insulated
300 Series Stainless Steel Shaft
Thermally Protected
Discount symbol: DS-FPS
Frequency: 60
Length Less Shaft: 12.99
Weight: 30

Specifications:

Type	Energy Efficient
Rating	Total Horsepower Rated
Speed	Two-Speed
Frame Size/Diameter	56Y
Enclosure	Open Drip Proof
Phase Category	Single
Voltage	230
Frequency	60 Hz
Amps	5.8/1.2
Service Factor
THP	1.25/0.20
RPM	3450/1725
Shaft Type	Threaded
Rotation	CCW Lead End
Mounting	Square Flange
