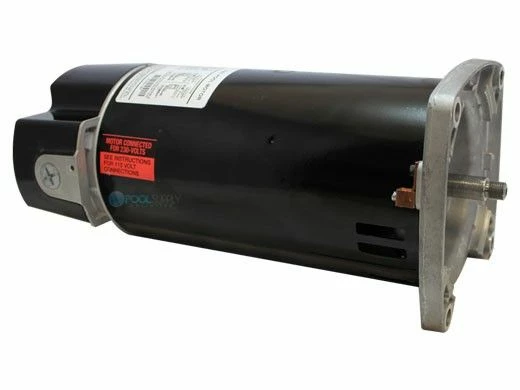

Replacement Square Flange Pool & Spa Motor | .33HP Full-Rated/.5HP Up-Rated | 48 Frame Standard Efficiency | 115/230V | EUSQ1052 | USQ1052 | HSQ065 | ASQ065

Original price was: $200.17.Current price is: $95.99.

SKU: CG9VB 177955 Categories: Replacement Pump Motors, U.S. Motors

Expertly Sourced, Quality Guaranteed
Online assistance, always just a message away.
Shop with Ease
Get the quality you deserve, for less.

Description
Reviews (0)

Innovative features, fast delivery, and exceptional reliability are the winning features built into every U.S. MOTORS® brand pool and spa motor Nidec Motor Corporation manufactures. Built-in, industry-leading features like angled terminal boards for convenient access…voltage selection with the flip of a switch…no-worry switches with no field adjustment needed…all help to make installing and maintaining these pool and spa motors much faster and easier than the competition.

Motor Features:

Two Compartment
Shaft Threads – 1/2-20 UNF-2A
50 Degree ‘C’ Ambient
Triple Bearing Protection
1081 Design
Continuous Duty
Open Drip-Proof
Sealed Ball Bearings
Thermally Protected
Class B Insulated
300 Series Stainless Steel Shaft
Voltage Selection Device (Dual Voltage Only)
Frequency: 60
Length Less Shaft: 11.80
Weight: 16

Specifications:

Type	Standard Efficient
Rating	Total Horsepower Rated
Speed	Single
Frame Size/Diameter	48Y
Enclosure	Open Drip Proof
Phase Category	Single
Voltage	115/230
Frequency	60 Hz
Amps	4.1/8.2
Service Factor
THP	0.65
RPM	3450
Shaft Type	Threaded
Rotation	CCW Drive End
Mounting	Square Flange
