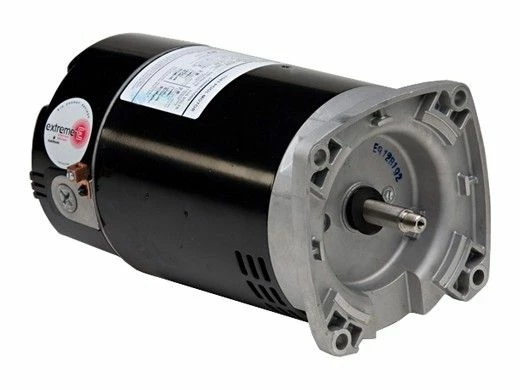

Replacement Square Flange Pool & Spa Motor 56Y Frame Standard Efficiency | 115/230V 0.5HP Full Rated 0.75HP Up Rated | R0479310 | EB846 | EB852 | B2846 | B2852 | ASB846

Original price was: $200.40.Current price is: $96.99.

SKU: CG9VB 29761 Categories: Replacement Pump Motors, U.S. Motors

Expertly Sourced, Quality Guaranteed
Online assistance, always just a message away.
Shop with Ease
Get the quality you deserve, for less.

Description
Reviews (0)

Innovative features, fast delivery, and exceptional reliability are the winning features built into every U.S. MOTORS® brand pool and spa motor Nidec Motor Corporation manufactures. Built-in, industry-leading features like angled terminal boards for convenient access…voltage selection with the flip of a switch…no-worry switches with no field adjustment needed…all help to make installing and maintaining these pool and spa motors much faster and easier than the competition.

Motor Features:

Two Compartment
1081 Design
Open Drip-Proof
300 Series Stainless Steel Shaft
Shaft Threads – 1/2-20 UNF-2A
Voltage Selection Device (Dual Voltage Only)
Switchless Design
6.5″ Diameter Frame
Double Sealed Ball Bearing
Continuous Duty
Class B Insulated
Thermally Protected
50 Degree ‘C’ Ambient
Frequency: 60
Length Less Shaft: 11.99
Weight: 22

Specifications:

Type	Standard Efficient
Rating	Total Horsepower Rated
Speed	Single
Frame Size/Diameter	56Y
Enclosure	Open Drip Proof
Phase Category	Single
Voltage	115/230
Frequency	60 Hz
Amps	5.4/10.8
Service Factor:
THP	0.95
RPM	3450
Shaft Type	Threaded
Rotation	CW Lead End
Mounting	Square Flange
