Replacement Variable Speed Threaded Motor | 1.65THP 115/230V 56J TEFC C-Flange Motor | NPTT165

Original price was: $305.00.Current price is: $98.99.

SKU: CG9VB 186007 Categories: Replacement Pump Motors, U.S. Motors

Expertly Sourced, Quality Guaranteed
Online assistance, always just a message away.
Shop with Ease
Get the quality you deserve, for less.

Description
Reviews (0)

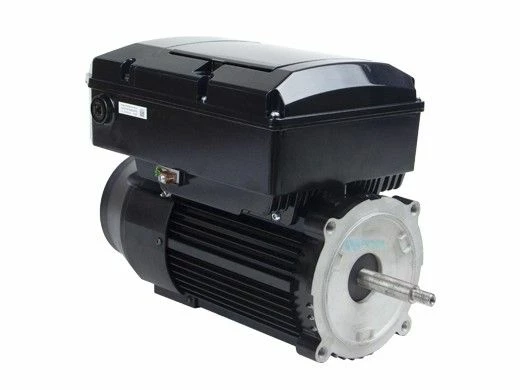

Neptune Variable Speed Threaded Motor

Features:

Fully integrated variable speed motor & control
Brushless permanent magnet (BPM) motor
Proposed DOE Law & CEC title 20 compliant
Dual voltage 1.25THP & 1.65THP models
TEFC — IPX5 enclosure
Shaft threads — (square flange) 1/2-20 UNC-2A or (C-Flange) 7/16-20 UNF-2A
50°C ambient
Triple bearing protection
1081 design
Continuous duty
Class B insulated
Sealed ball bearings
80%+ motor & control efficiency @ full speed
300 Series stainless steel shaft
Speed range: 600-3450 RPM
Low temperature monitor
Finned aluminum enclosure
Fully functional user interface
Modbus & low voltage connection to pool control systems
Up to seven daily schedules can be programmed
Adjustable priming time & speed
Menu keypad lockout
Designed for quiet operation
Simple “drop in” installation with no complex wiring
Factory programmed schedule settings to meet the proposed DOE law & the CEC title 20 rule
Ability to communicate with pool control systems
Discount symbol: DS-FPS
