Waterco Micron Commercial Horizontal Media Filter | 42″ X 75″ | 19.6 Sq. | 4″ Flange Right | 2228075R

The Micron horizontal filter is a space-saving high performer; its compact horizontal design allows installation with minimum waste of space. The shape of the Micron horizontal filter is both attractive and functional. The spherical ends are designed to give uniform flow from both inlet and outlet collection assemblies.

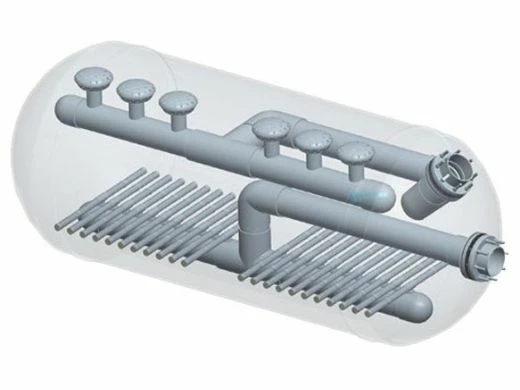

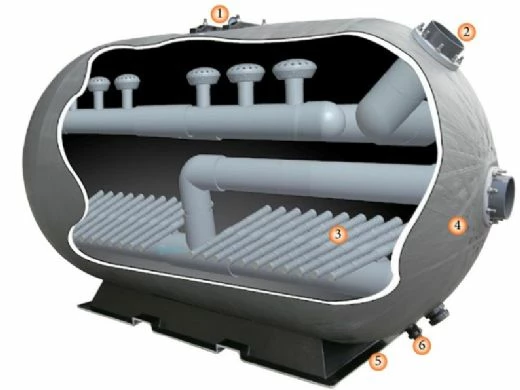

Waterco has vastly improved the hydraulic efficiency of its horizontal filter lateral system by looping its distributors and laterals. The new lateral configuration provides a more natural flow of water through the filter, ensures optimum water filtration and balanced fluidization of the filter bed during backwashing. Its individual laterals are shortened while maintaining filter media bed coverage, reducing the friction head loss of each lateral, further improving the filter’s hydraulic efficiency.

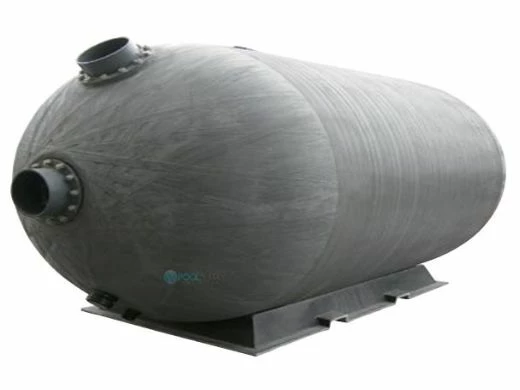

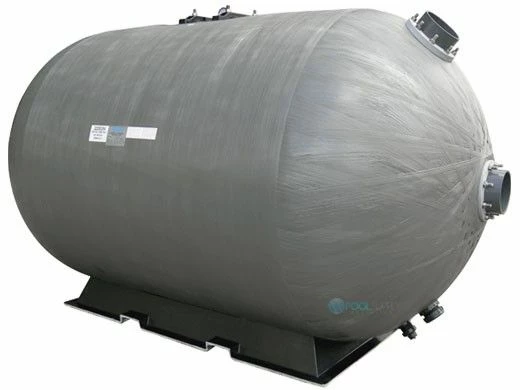

Micron fiberglass filters embody the latest in fiberglass winding technology. Micron fiberglass vessels consist of an inner shell of fiberglass reinforced polyester resin wound over with fiberglass filament. Waterco’s digitally controlled filament winding machine faultlessly winds continuous strands of high quality fiberglass filament under controlled tension filament to create a seamless one-piece vessel with refined consistency and superior quality. There are no welds or seams or special tank linings which can corrode or electrolyse.



Using non metallic components fiberglass pressure tanks are rapidly replacing steel tanks in numerous applications. Fiberglass vessels offer several advantages in comparison with steel vessels.

Waterco’s new lateral configuration provides a more natural flow of water through the filter, ensuring optimum water filtration and balanced fluidization of the filter bed during backwashing. Its individual laterals are shortened while maintaining filter media bed coverage to reduce the friction head loss of each lateral and further improve the filter’s hydraulic efficiency. This reduces backwash run times, saves valuable water, and produces flatter, more uniform filter media bed after backwashing.



Conventional lateral systems result in uneven fluidization of the filter media bed. The beginning of the lateral system experiences a strong flow of water, which gradually decreases along the length of the lateral piping. Backwash flow also decreases towards the end of each lateral, resulting in nonuniform lifting of the filter media bed.

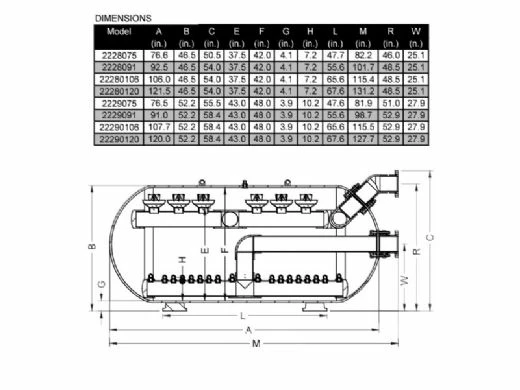

Model	Port Size (in)	Bed Depth (in)	Inner Dia. (in)	Filter Area (sq ft)	Flow Rates gpm/sq ft 5      10      15      20				Media Volume (gallons)	Gravel 1.2-2.4 (lbs)	Sand 0.6-1.2 (lbs)
42×75	4.0	14.1	42	19.6	98	196	294	392	183	450	2,000
42×91	6.0	11.8	42	24	120	240	360	480	232	900	2,200
42×106	6.0	11.8	42	28.2	141	282	423	564	277	1,000	2,600
42×120	6.0	11.8	42	32.2	161	322	483	644	322	1,300	3,000
48×75	4.0	13.6	48	22.1	111	221	332	442	175	850	2,250
48×91	6.0	13.6	48	27.6	138	276	414	552	295	1,100	2,850
48×106	6.0	13.6	48	32.4	162	324	486	648	355	1,350	3,400
48×120	6.0	13.6	48	37	185	370	555	740	411	1,600	3,900

Note: Minimum backwash flowrate 15 GPM / SQ. FT.

Tank Diameter

42″

Valve Position

Side

ClearPro Technology

No

Square Foot

19.6
