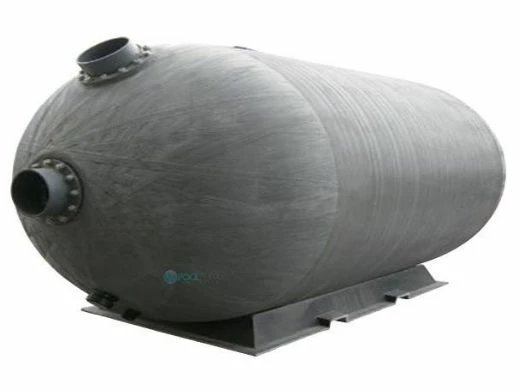

Waterco Micron M2500L Commercial Horizontal Sand Filter | 50″ X 88″ | 27.5 Sq. Ft. | 4″ Flange Left | 22290104LNA

The Micron horizontal filter is a space-saving high performer; its compact horizontal design allows installation with minimum waste of space. The shape of the Micron horizontal filter is both attractive and functional. The spherical ends are designed to give uniform flow from both inlet and outlet collection assemblies.

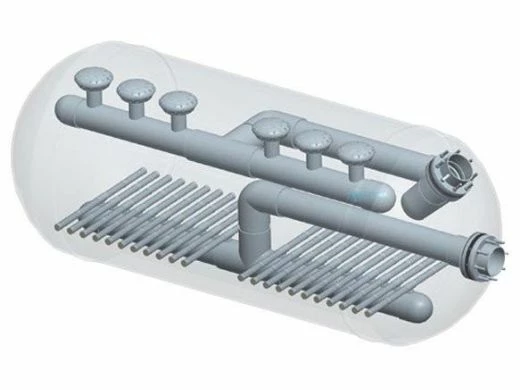

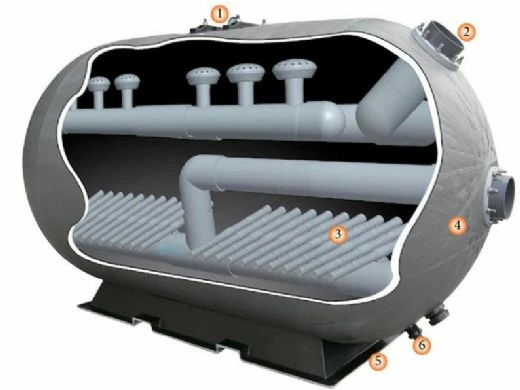

Waterco has vastly improved the hydraulic efficiency of its horizontal filter lateral system by looping its distributors and laterals. The new lateral configuration provides a more natural flow of water through the filter, ensures optimum water filtration and balanced fluidization of the filter bed during backwashing. Its individual laterals are shortened while maintaining filter media bed coverage, reducing the friction head loss of each lateral, further improving the filter’s hydraulic efficiency.

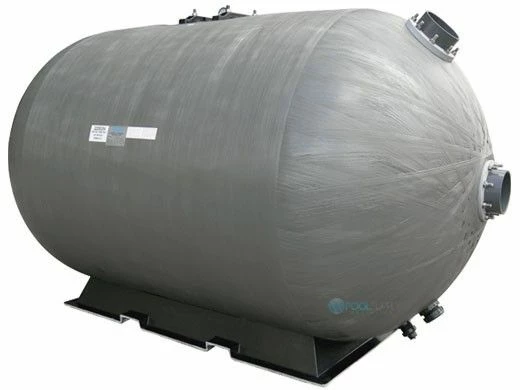

Micron fiberglass filters embody the latest in fiberglass winding technology. Micron fiberglass vessels consist of an inner shell of fiberglass reinforced polyester resin wound over with fiberglass filament. Waterco’s digitally controlled filament winding machine faultlessly winds continuous strands of high quality fiberglass filament under controlled tension filament to create a seamless one-piece vessel with refined consistency and superior quality. There are no welds or seams or special tank linings which can corrode or electrolyse.



Using non metallic components fiberglass pressure tanks are rapidly replacing steel tanks in numerous applications. Fiberglass vessels offer several advantages in comparison with steel vessels.

Waterco’s new lateral configuration provides a more natural flow of water through the filter, ensuring optimum water filtration and balanced fluidization of the filter bed during backwashing. Its individual laterals are shortened while maintaining filter media bed coverage to reduce the friction head loss of each lateral and further improve the filter’s hydraulic efficiency. This reduces backwash run times, saves valuable water, and produces flatter, more uniform filter media bed after backwashing.



Conventional lateral systems result in uneven fluidization of the filter media bed. The beginning of the lateral system experiences a strong flow of water, which gradually decreases along the length of the lateral piping. Backwash flow also decreases towards the end of each lateral, resulting in nonuniform lifting of the filter media bed.

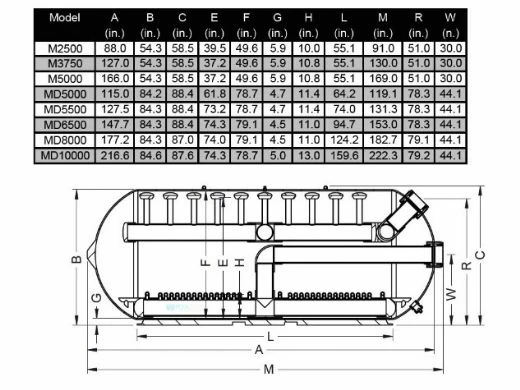

Model	Valve Size (in)	Bed Depth (in)	Inner Dia. (in)	Filter Area (sq ft)	Flow Rates gpm/sq ft 5      10      15      20				Media Volume (gallons)	Gravel 1.2-2.4 (lbs)	Sand 0.6-1.2 (lbs)
M2500	4.0	19.7	49.6	27.25	135	269	404	538	383	2250	2900
M3750	6.0	19.7	49.6	38.00	202	404	605	807	626	3650	4700
M5000	6.0	19.7	49.6	51.00	269	538	807	1078	843	4850	6400
MD5000	8.0	47.2	78.7	54.00	270	540	810	1080	1500	1900	19500
MD5500	8.0	47.2	78.7	59.50	298	595	893	1190	1700	2100	21500
MD6500	8.0	47.2	78.7	70.25	351	703	1054	1405	2000	5500	21150
MD8000	8.0	47.2	78.7	88.25	441	883	1324	1765	2550	8650	25950
MD10000	10.00	47.2	78.7	110.25	551	1103	1654	2205	3200	10000	32800

Note: Minimum backwash flowrate 15 GPM / SQ. FT.

Tank Diameter

50″

Valve Position

Side

ClearPro Technology

No

Square Foot

27.50
